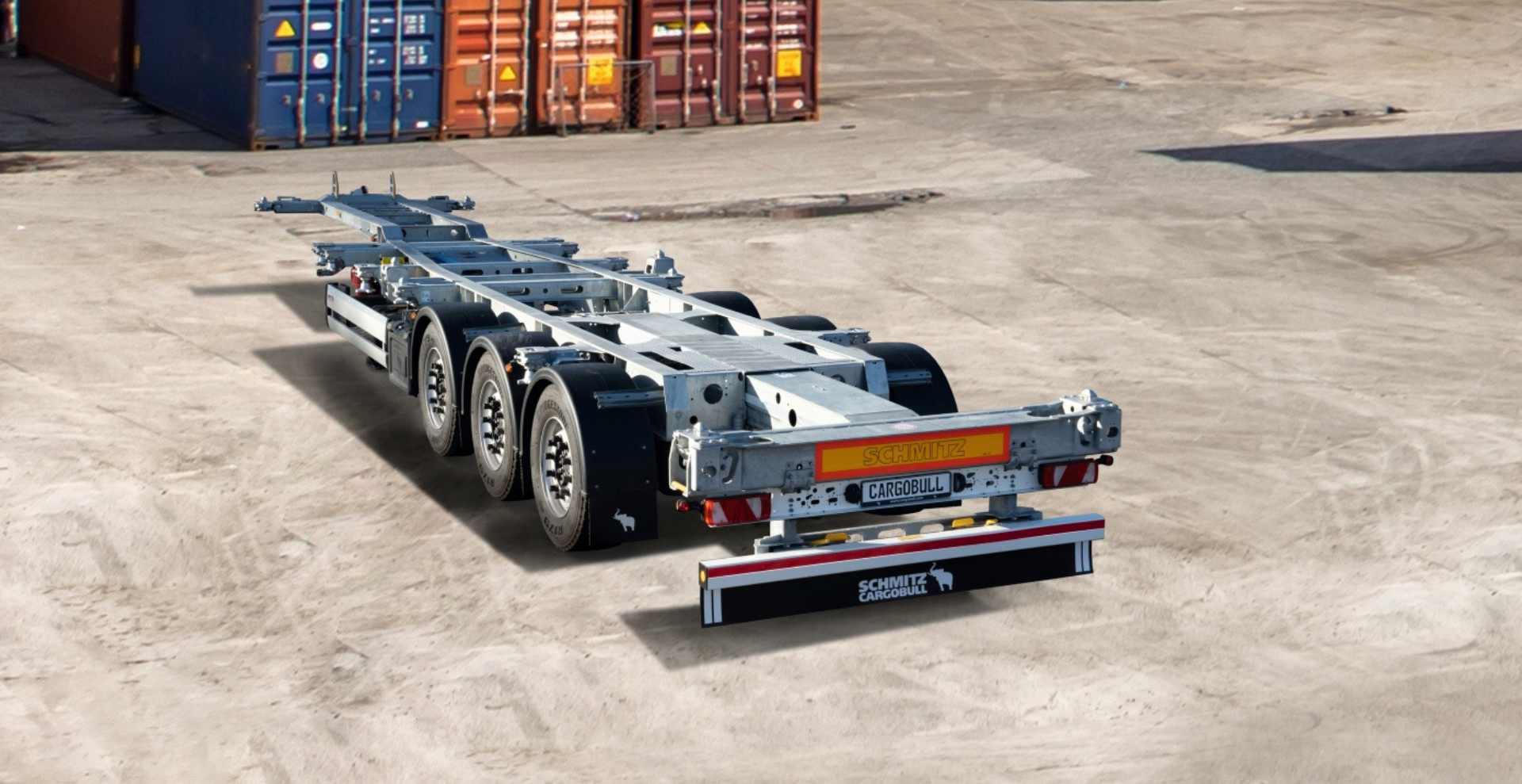

S.CF ALLROUND 20-45

Adjustable rear
NEW: Flat rear
-
For a wide range of transport tasksWith mountings for 20' to 45' containers with or without tunnelLes mer
-
For a wide range of transport tasks
Flexible loading of 2 x 20’, 20’ centre-aligned, 30’ rear-flush, as well as 40’ and 45’ tunnel containers.
Les mer -
Well thought-out
130 mm frame neck height for a maximum 4,000 mm overall height
Les mer -
Optimised locking systems
MULTI LOCK and KLAPP LOCK ensure secure container locking for a wide range of applications.
Les mer -
Greater flexibilityFold-down container supports enable the transport of containers without tunnel extensions.Les mer
-
TrailerConnect® included
The tyre pressure monitoring system provides important vehicle data in real time, reduces tyre wear and supports cost-effective operation.
Les mer -
For greater versatility
Accommodates 40’ and 45’ containers without tunnel extensions thanks to the height-adjustable STEP LOCK®.
Les mer -
Weight-optimised
The kerb weight has been reduced by up to 130 kg, increasing the payload and supporting efficient, cost-effective transport operations.
Les mer
Your benefits
-
Versatile use
Front and rear extension mechanisms allow easy adaptation to different container sizes from 20’ to 45’
Les mer -
Secure locking
The height-adjustable KLAPP LOCK locks the front container when loading 2 x 20’ containers.
Les mer -
Easy handling
Mechanical front extension, pneumatic rear extension and intuitive user guidance ensure efficient operation in day-to-day use.
Les mer -
Seaworthy
2 pairs of ferry lashings
Les mer
Equipment features
-
Chassis
-
Understell
-
Låsene
-
Others
The new in-house developed underride guard for better handling
New operating concept
Simple explanations via QR code

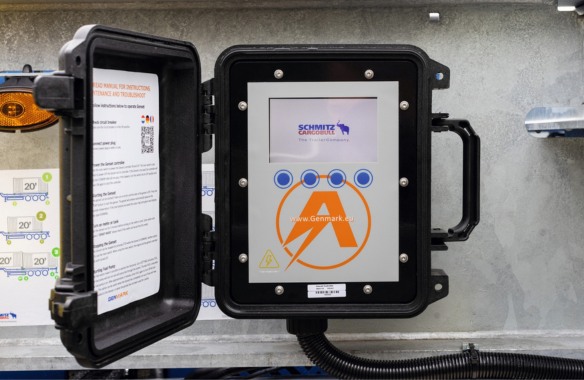

Brand generator set ex works for supplying power to refrigerated containers
Genset financing offer
Refrigerated containers (20/40/40' high cube) account for 4% of the total volume of TEU sea containers and therefore transport well over 50% of refrigerated cargo by sea. Refrigerated containers must also be safely supplied with power for several days during subsequent land transport. Schmitz Cargobull offers a complete ex-works solution for the S.CF 45' EURO container chassis. The universal solution for 20' to 45' containers is equipped with a generator set for a self-sufficient power supply, making it even more versatile and increasing its trailer uptime.
Finance the generator set including CEE socket 32A/3h with Schmitz Cargobull Finance from 263 euros per month and benefit from numerous advantages.
-
Brief Information: Transport solution for refrigerated containers
Your advantages
- One-stop shopping: complete solution ex works without additional effort by retrofitting at the service partner
- Customised and reliable thanks to individual adaptation to the S.CF ALLROUND 20-45 container chassis
- High ground clearance of approx. 310 mm
- Self-sufficient power supply for up to 60 hours from remote units
- Branded product with large service network
- Immediately available from stock
Våre tjenester
Media
-
Brief Information Container Chassis S.CF ALLROUND 20-45
